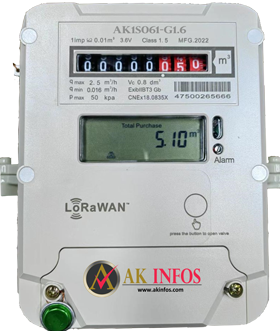

HOW TO USE
The
micropower multi-channel wireless data transmission module is embedded inside
of the gas meter, and it can transmit meter data, such as gas flow to the
wireless meter reading system, then the management staff can inquiry gas
consumption of each gas meter via the support of software, and meanwhile, the
staff can also remotely control the gas meters.
This
remote meter-reading way can avoid the traditional meter-reading house-by-house,
save cost, easy operation and maintenance, greatly improve the management
efficiency.
The
microcomputer inside of the gas meter can calculate and store the gas quantity
automatically, and can automatically test the battery status. When the battery is
low power, the valve will
close automatically; when the gas meters are attacked by strong electricity,
magnet, the valve will also close automatically.
The wireless data transmission module adopts
high efficient error correct encoding technology, and greatly improve
anti-disturbing and sensitivity, low power consumption, long distance
transmission, thus it realizes high efficient wireless data transmission.

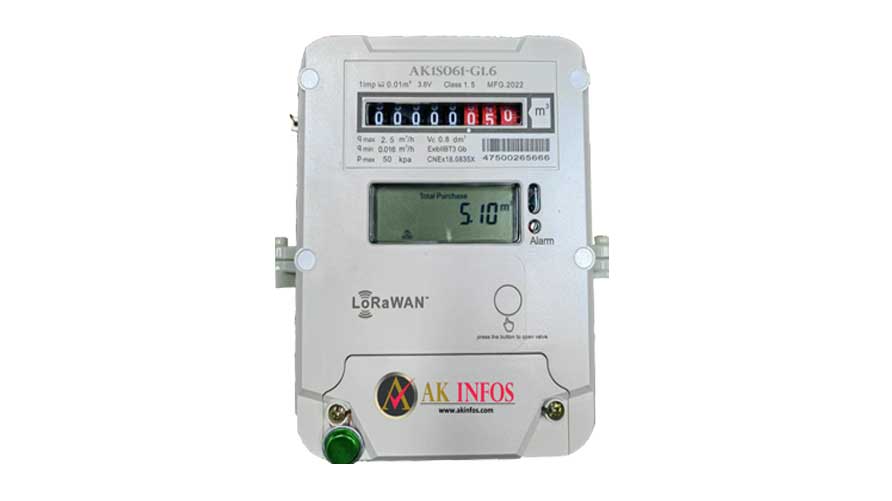

FUNCTIONS

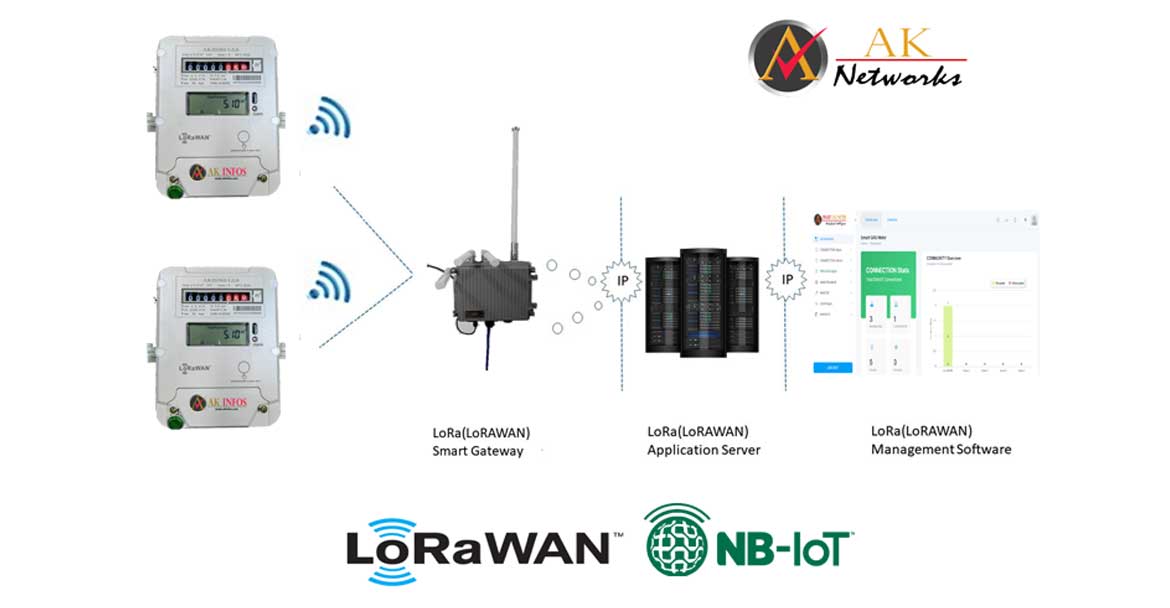

1. Remote meter reading: The smart gas meter transmits meter data by wireless meter reading network, the management staff can inquiry gas consumption, valve status, and battery status etc, they can also read meter remotely by wireless meter reading software or hand held unit.
2. Close valve remotely: The gas meter will close valve and stop gas supply after get the command of close valve from the wireless software or hand held unit.
3. Allow to open valve remotely: Transmit command of open valve to the gas meter by wireless software or hand held unit, the gas meter will enter into allow to open valve status after get the command, while not directly open valve.
4. Open valve: When the gas meter in the status of allowing to open valve, press the button on the meter shell, the gas meter will open valve to supply gas (note: press the button cannot open gas meter valve to supply gas if the meter is in the status of forbidden to open valve)
5. Close valve when attacked: When the gas meter is attacked by strong electricity and magnet, the meter will close valve automatically. Please remove the attack source firstly, and then press the button to open valve and recover gas supply.
6. Replace battery: The battery need to be replaced if
the gas meter stops gas supply automatically, the batteries are 4 pieces of AA
alkaline dry battery. When replace battery, open the battery cover, replace the
old battery with new one, and then press the button on the meter shell to
recover gas supply.
CERTIFICATION
1. GB/T6968 - 2011
2. JJG577 - 2012 Certification
3. ISO9001:2008 Certification
4. IP65 Certification
TECHINICAL PARAMETERS
|
ITEM
|
SMART GAS METER
|
|
Model
|
Unit
|
G1.6
|
G2.5
|
G4.0
|
|
Minimun Flow rate Qmin
|
m³/h
|
0.016
|
0.025
|
0.04
|
|
Startup Flowrate
|
m³/h
|
≤0.003
|
≤0.005
|
≤0.005
|
|
Maximum Flowrate Qmax
|
m³/h
|
2.5
|
4
|
6
|
|
Overload Flowrate Qmax
|
m³/h
|
4
|
4.8
|
7.2
|
|
Cyclotron Volume (Vc)
|
dm³
|
0.7
|
1.2
|
2
|
|
Maximum Permissiable Error
|
%
|
qmin≤q＜qt ≤±3％；qt≤q≤qmax ≤±1.5％
|
|
Maximum Working pressure
|
kPa
|
≤050
|
|
Communication Frequency
|
MHz
|
868MHz
|
|
Total Pressure loss
|
Pa
|
≤200
|
|
Tightness
|
kPa
|
No leakage for 3 minutes at the pressure of 75kPa
|
|
Working Current of Static State
|
μA
|
≤10μA
|
|
Working Temperature
|
℃
|
-25℃～55℃
|
|
Minimum Reading
|
m³
|
0.0002m³
|
|
Maximum Reading
|
m³
|
99999.999m³
|
|
User Steal Gas Power
|
Close valve automatically and send attack meter information to the software
|
|
Transmitted Power
|
mW
|
≤50mW
|
|
Transmission Speed
|
bps
|
2400bps
|
|
Maximum Communication Distance
|
m
|
300m(in open
field)
|
|
Power supply
|
V
|
4×1.5V (AAA
Alkaline dry battery)
|
INSTALLATION
1. The installation shall be done by the professional person of Gas Power Company, and shall be installed according to the requirement of code for management of city gas engineering
2. The gas meters are forbidden to be installed in the bedroom, bathroom and the place where there are flammable, explosive and dangerous goods.
3. The gas meter shall be installed in the good aeration place, and shall be convenient for reading, observe and overhaul.
4. The gas meter shall be installed vertically, and cannot slant, and the vertical missing should be less than 1mm, the horizontal distance between the gas meter and the gas stove shall not less than 300mm
5. Power socket and wire can not be installed near
the gas line, and the distance shall not be less than 300mm. No power wire and
electrical equipment is installed within 500mm of the gas meter.
6.Pay attention to the direction of gas meter inlet
and outlet, and choose the right gas meter, because it cannot be installed
reversely.
7. Screw thread is forbidden to be filled with any sealing objects.
8. After finish the installation, should test the leak tightness. And if it is qualified, then it can be used. Before inflaming, should discharge all of the air inside the gas meter and pipeline.

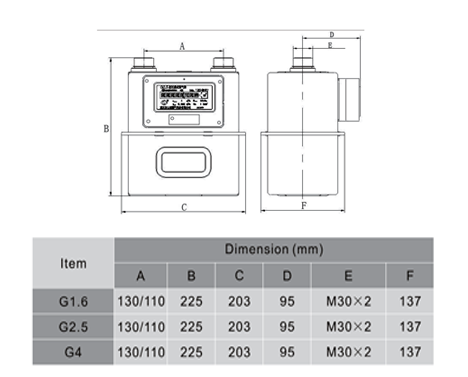

DIMENSION
MAIN TECHNIQUES
1. Micropower technology: the power consumption is less than 10μA at ordinary times, adopt timing detect technique to improve the battery life.
2. Electrical valve technique: adopt electrical valve technique, work reliably and lower loss of pressure.
3. Totally sealed design: all the circuits are sealed by high performance casting glue, so there is no exposed electrode, good leak tightness.
4. Anti-attack of strong electricity or magnet: gas meter will close valve automatically and give indication when being attacked by strong electricity or magnet.
5. Wireless transmission technique: no need of communication cable layout, greatly reduce the installation cost.
6. Micro-computer and microstorage technique: high integrated and high reliability.
