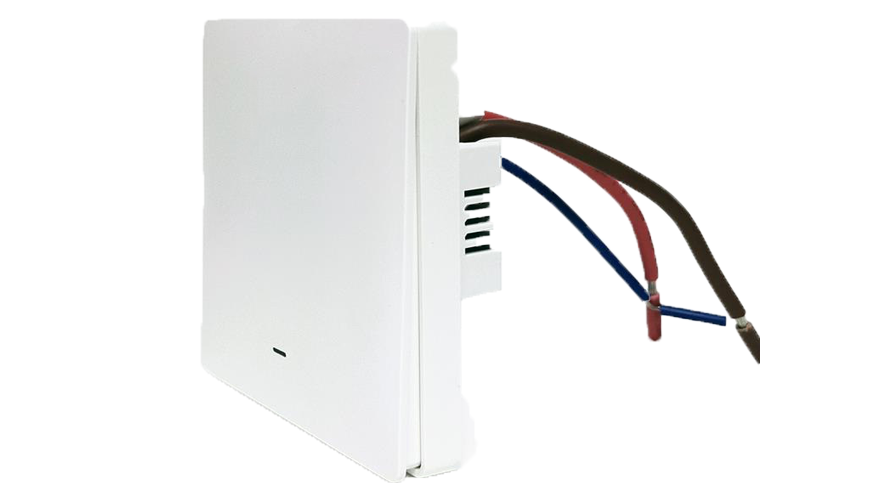

Smart Switch

OUR PROUD ADDITION TO THE SMART SERIES OF AKINFOS SOLUTIONS EQUIPPED WITH LORAWAN TECHNOLOGY

SEO

Support local or remote control via high reliability relay

Built-in switch indicator, easy to use in dark environment

Ultra-wide-distance wireless transmission up to line of sight of 2 km.

Function well with standard LoRaWAN® gateways and network servers

Compliant with AKINFOS IoT Cloud

Support multicast feature to control switches in bulk

Easy on-site installation



Smart Switch Features



TECHINICAL PARAMETERS

Technical Parameter

Description

Technology

LoRaWAN ®

Frequency

CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4

Tx Power

16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)

Sensitivity

-137dBm

Mode

-OTAA/ABP Class C


Electrical

Switches

1-Gang

Switch Indicator

Ice Blue

Input Voltage

100~250 VAC, 50~60 Hz

Maximum Current

Inductive: 5 A per Gang, Total 10 A
Resistive: 10 A per Gang, Total 10 A

Rated Load

Max 1000 W per Gang, Total

Terminal

Terminal

Circuit Type

3-Wire


Physical Characteristics

Ingress Protection

IP20

Material

Antiflaming Polycarbonate

Color

White

Dimensions

86 Type: 86 × 86 × 40 mm (3.39 × 3.39 × 1.57 in)

Operating Temperature

-20°C to +60°C (-4℉ to +140℉)

Relative Humidity

0% to 95% (non-condensing)
